EZVIZ DB1C

€ 144,95 (inclusief btw 21%)
Levertijd 2 tot 3 werkdagen
Specificaties
Productcode EZVIZ-DB1C-KIT
Productcode leverancier EZVIZ-DB1C-KIT
Omschrijving

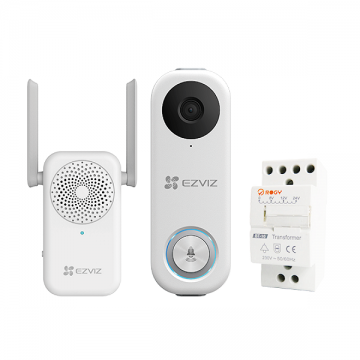

EZVIZ DB1C WiFi Videodeurbel set

Belangrrijkste kenmerken:

DB1 video doorbell:

  • Image Sensor: 1/2.4" Progressive Scan CMOS;
  • Lens 2.1 mm @ F2.4,
  • View angle: 170° (Vertical)
  • Day & Night IR-cut filter with auto-switching
  • Night Vision Max. 5 m
  • Video: Max. Resolution 1536 x 1536
  • DNR 3D DNR
  • WDR Digital WDR
  • Video Compression H.265 / H.264
  • Frame Rate Max: 15 fps Self-adaptive during network transmission
  • Motion detection (with person shape detection)
  • Long distance video two-way talk
  • Wi-Fi: Wireless IEEE802 11a/b/g/n
  • 2.4 and 5 GHz dual band WiFi
  • Channel Bandwidth Supports 20 MHz;
  • Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
  • Working Temperature -10 °C to 45 °C
  • Working Humidity 95% or less (non-condensing)
  • Power Supply AC 12 V to 24 V (220 mAh backup battery)
  • IP Grade IP65
  • Weight 102g

Chime:

  • Working Temperature -10 °C to 40 °C
  • Working Humidity 95% or less (non-condensing)
  • Power Supply 100V- 220V AC
  • Power consumption max 0.6W
  • Weight 120g
  • WiFi Standard IEEE802 11a/b/g/n
  • Frequency range 2.4 GHz ~ 2.4835 GHz
  • Supports 20 MHz channel bandwidth
  • Dual External antennas
  • Protocol / Interface Protocol: EZVIZ cloud proprietary protocol
  • Storage: No
  • Wired network: does not support

Transformer:

  • Rated Input Voltage: 230V AC
  • Rated Output Voltage: 8V, 12V, 24V AC
  • Rated Frequency: 50 Hz
  • Rated Power Output 8V: 10VA; 12V: 20VA; 24V: 30VA
  • Power Consumption 1.15 W
  • Service Period: Continuous operating
  • Connection Terminals: Pillar terminal with clamp
  • Connection Capacity: Rigid conductor 10 mm²
  • Installation: On symmetrical DIN rail 35 mm panel mounting
  • Terminal Connection Height H=15.5 mm
  • Operating Conditions -5 °C to 40 °C, Humidity 95 % or less
  • Dimensions 35.3 x 86 x 68 mm
  • Net Weight 323 g
